Home Gaming AMD Ryzen Mobile Processors Launched With ‘Zen’ CPU Cores and ‘Vega’ Graphics...

The last part of AMD’s arrival to extraordinary performance in laptops. While Threadripper, Ryzen, and EPYC have used the 8-core Zeppelin structure block for their own crops, the laptop side of the equality will association with the extraordinary performance of Zen core with the newest Vega graphics in a single part of silicon. AMD Ryzen is now set to the announcement the consequences of their struggles: a single silicon chip contribution is four Zen cores, up to ten Vega compute units, and a combined power distribution system all in below 15W, with AMD Ryzen plugging +200 percent CPU piece and +128 percent GPU piece over its last generation of laptop processors. Lenovo, Acer, and HP are launching laptops based on the Ryzen Mobile hardware in the present day, and suppose to see additional OEMs at CES in January with their presence.

AMD Ryzen

2 APUs Currently, Extra Lately

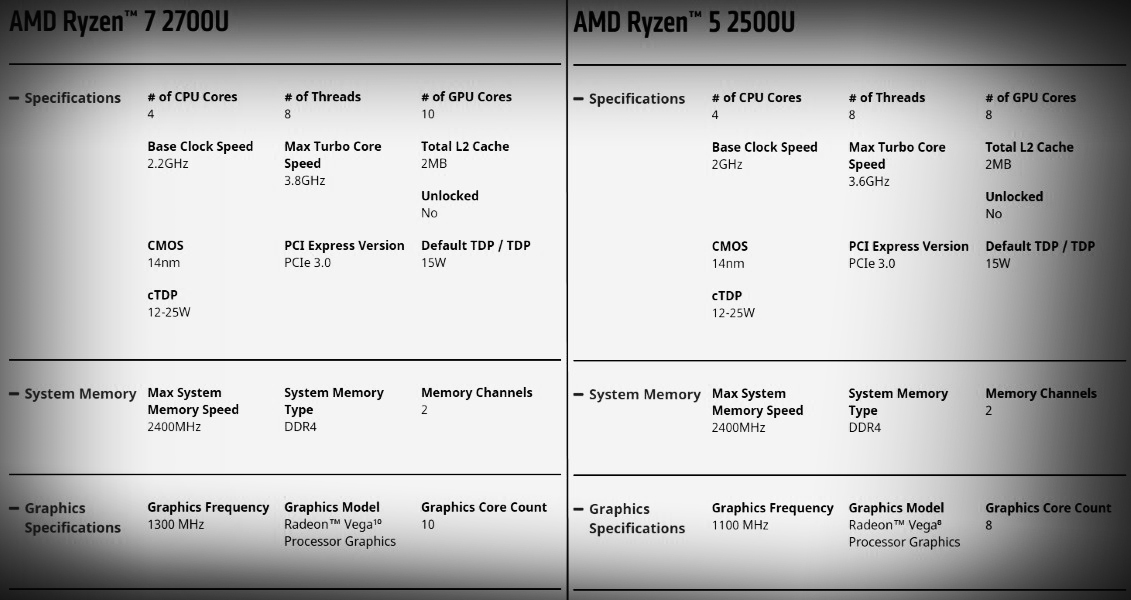

To start, AMD Ryzen is initiation a couple of low-power processors for the laptop fair, the Ryzen 5 2500U and the Ryzen 7 2700U. Both of these processors syndicate four of AMD’s newest Zen cores, with some slight developments, with AMD’s newest Vega graphics, interested in a single quantity of silicon. These are both 15W processors, expending the U-suffixed classification that Intel has promoted for its 15W slices. By evolving about a 15W AMD, TDP is pointing for the similar array of thin and light notebooks that are presently nearby the complete Intel-powered, while also using via Vega graphics style as an important export point in gaming and supporter capacity acceleration. AMD Ryzen has also absent into the part of about a quantity of power-saving knowledge that is has settled and applied to offer improved battery life.

Both APUs will have 4 CPU cores and concurrent multi-threading, giving 8 threads. The valued base on the clock for the processors will be in the 2.0 GHz variety, even though AMD states that the characteristic of the all-core turbo will be far upper than this. CPU boost rates are 3.6 GHz for the Ryzen 5 2500U and 3.8 GHz for the Ryzen 7 2700U, which sound extraordinary for 15W CPUs but AMD Ryzen has definite that this rate blend is more in the efficiency correct point for the CPU project. Similar to its opponent, OEMs can use these processors in configurable TDP styles, which AMD Ryzen states are from 9W – 25W.

The 4 cores will be in a particular CCX (core complex), which AMD condition is will ease some of the demands about CCX – CCX potential that is existing in the dual CCX project for the desktop processors. There is extra cutback likened to the desktop, there are only 1 megabytes of L3 cache per core quite than 2 megabytes, giving an entire of 4 megabytes of L3 cache. AMD Ryzen Zen cores use L3 victim caches, which for maximum CPU-based on jobs have tiny effect; though the haste of this L3 will be essential when it comes to using the incorporated graphics.

The particular silicon project has 11 Vega compute pieces involved, of which the Ryzen 7 2700U will be capable to use 10 of them, and the Ryzen 5 2500U will be capable to use 8. These will be named as ‘Vega 8′ and ‘Vega 10′ graphics individually. AMD Ryzen does not offer the base incidences for the graphics but does state that the supreme rates for the portions will be 1100 MHz and1300 MHz respectively. One of the AMD’s key conversation opinions in our updates is the capability to shift control between the GPU and the CPU to keep the supreme performance at all times.

AMD Ryzen

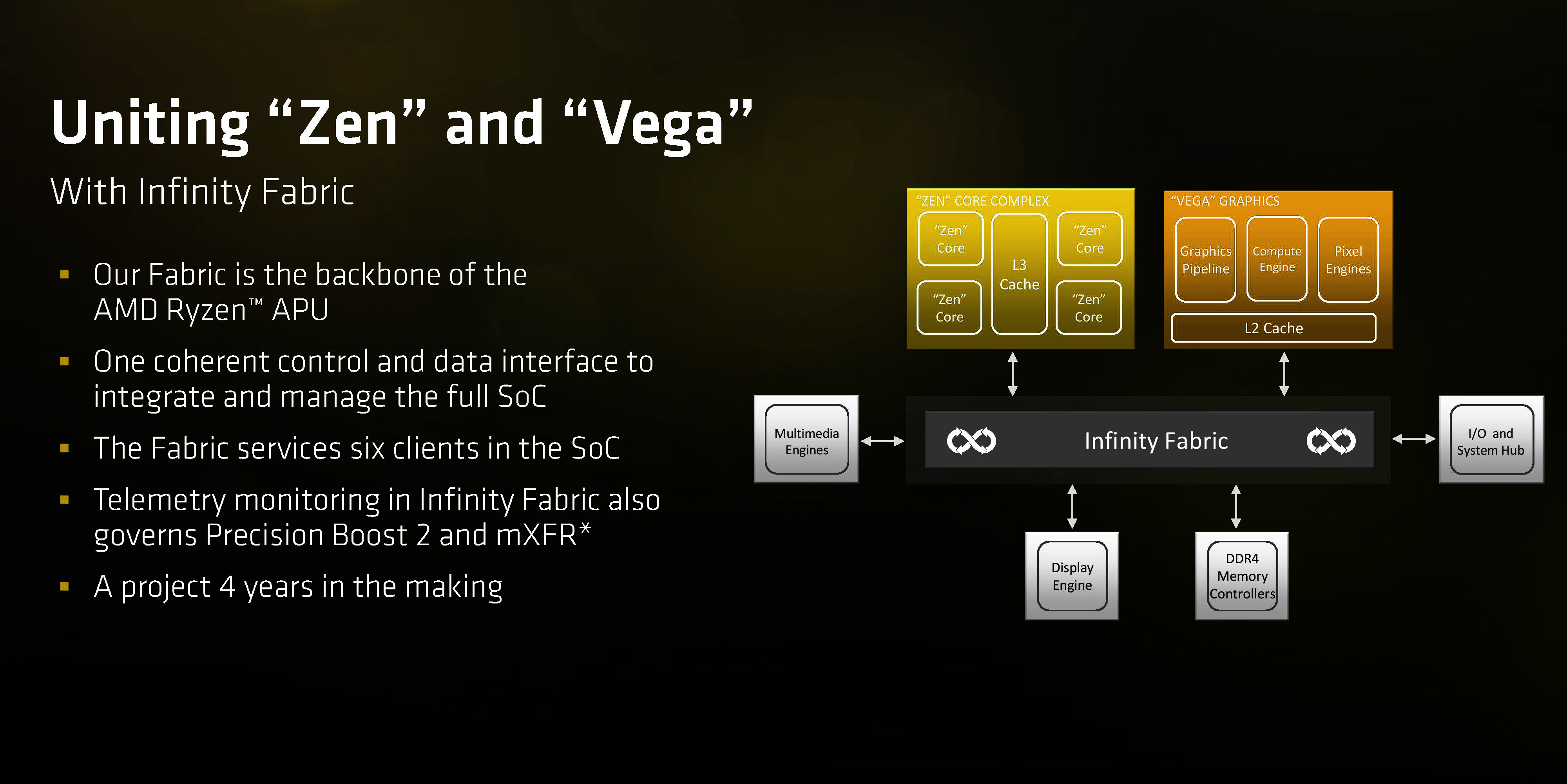

Memory maintenance for both CPUs is up to double channel DDR4-2400; even though AMD Ryzen specified that it will be up to the laptop OEMs to choose whether to sell the strategies with two memory units. Some of the response the OEMs development is the must to ‘potentially’ improvement the memory inside at a far along day, which requires shipping single station strategies and sendoff a memory slot free, rather than swapping two memory sections at once. The new Ryzen Mobile processors use AMD’s Eternity Fabric communicate between the GPU and CPU sections, which runs at partial the clock rate of the memory, and AMD Ryzen states it offers better bandwidth and lower expectancy than PCIe.

AMD Ryzen Mobile-based Laptops Upcoming to Drops

When they announce the final press releases in pointer there will be exact news stories for each of the laptops upcoming to fair, but AMD Ryzen shared some particular info ahead of time about how AMD Ryzen is repaying to light and thin notebooks that truly have an accurate design ID. There were lots of operators who were attentive in AMD APUs but in Spite or a Swift-like frame, rather than the huge plastic decreased cost parts that sellers were placing out in its place.

AMD Ryzen

AMD Ryzen Mobile-based LaptopsAMD Ryzen

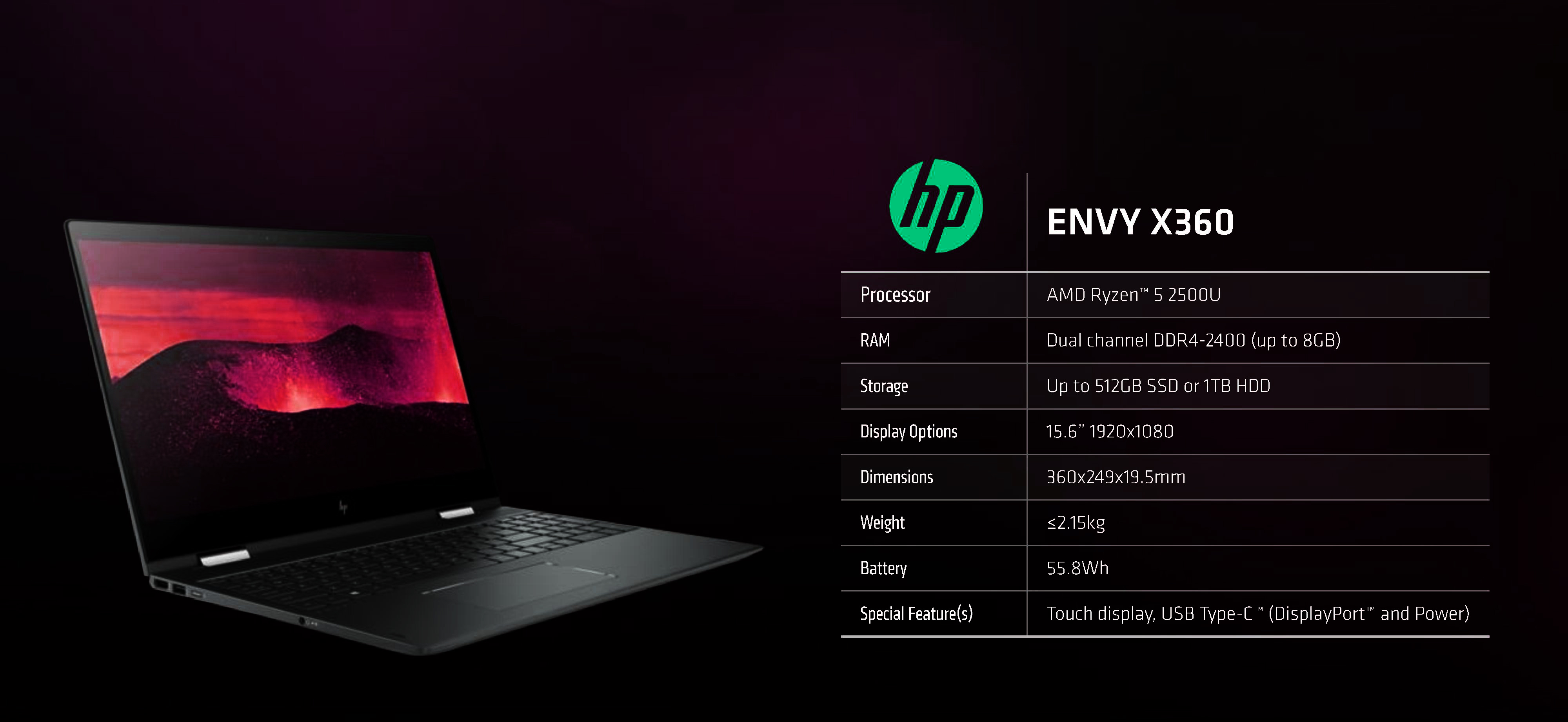

The HP Envy is truly the largest notebook of the 3, presenting a 15.6-inch dual-channel DDR4-2400 and 1080 pixel resolution of IPS screen. Internal storage will be presented with SSDs up to 512 GB and HDDs up to 1TB. At just under 5 lbs. it is a little heavier, and then the x360 portion of the term means it has a rotational axis, it also used a tablet, as well as with the touchscreen. Power charger is offered over USB Type-C style, which also supports the DisplayPort alt-mode. Price will start at $699 and it will be delivered from November.

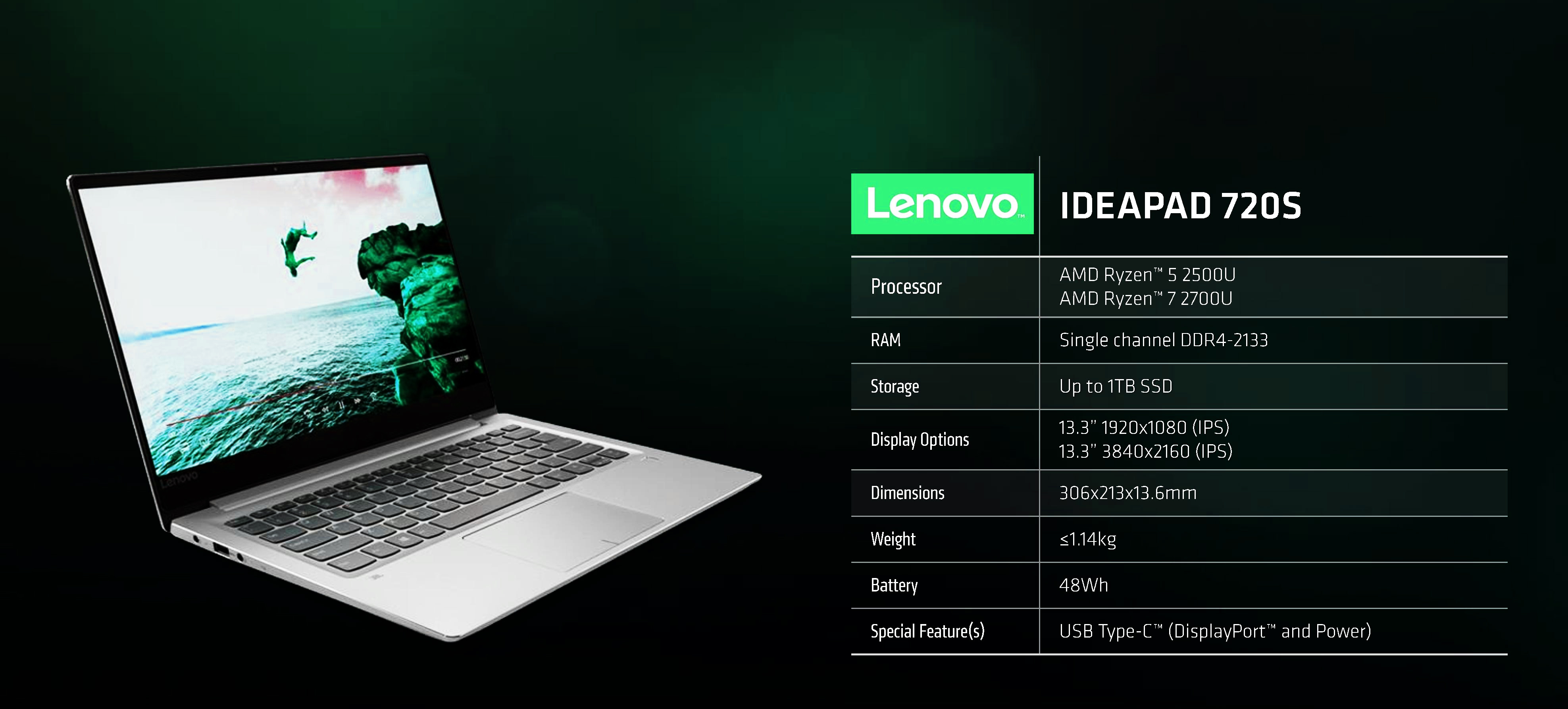

The Lenovo device is the lesser one, coming in at 2.5 lbs., and providing either a 1080p IPS display or a 4K Ultra High Definition IPS display. This model uses a repurposed frame from an Intel version but will be obtainable with both the Ryzen 5 2500U and the Ryzen 7 2700U CPUs. As with very famous notebooks, the Ideapad 720S will match to a point at the advantage, but at its densest opinion, it will be around half an inch. It wills sustenance a 48 Wh battery and USB Type-C style charging with a DisplayPort alt-mode, with storage up to 1TB of SSD. The downside is perhaps the memory provision, at DDR4-2133 and only one station with no room for renovation to the dual station. Eventually, Lenovo is going to promote this for productivity that is not memory bandwidth limited over gaming.

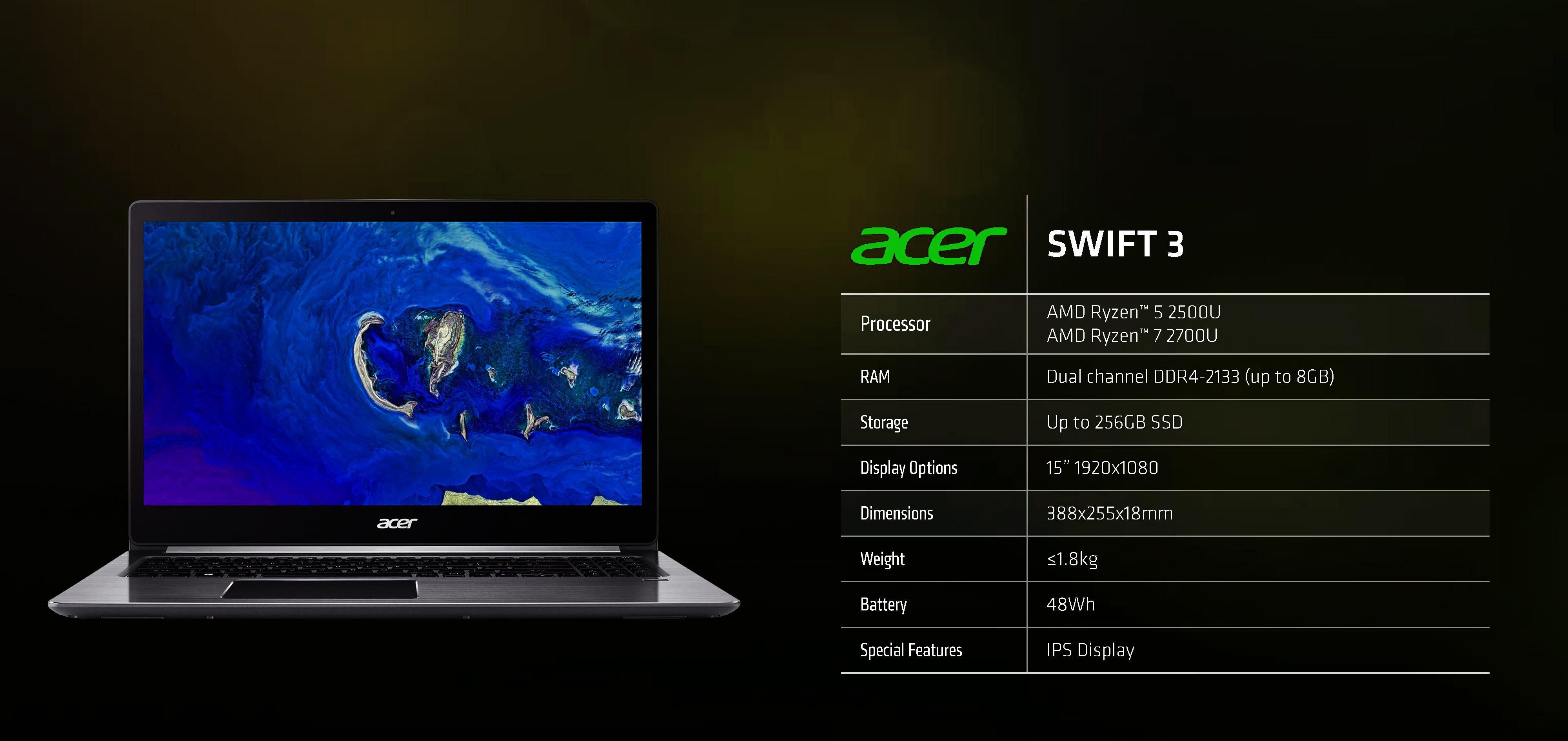

The Swift 3 is a slight dissimilar than the others device.  Acer has built this frame to dispel 25W of computer power slightly than 15W, the sense that Acer is going to be taking benefit of longer turbo styles and improved performance statistics than other Ryzen Mobile portions. It will come with a 15-inch 1080p resolution screen, although it will not be available in touch screen, and storage will be up to 256GB of SSD.  Internal storage will be dual channel, although the system will only support 8GB of DDR4-2133, and there is no mention of an upgrade.
